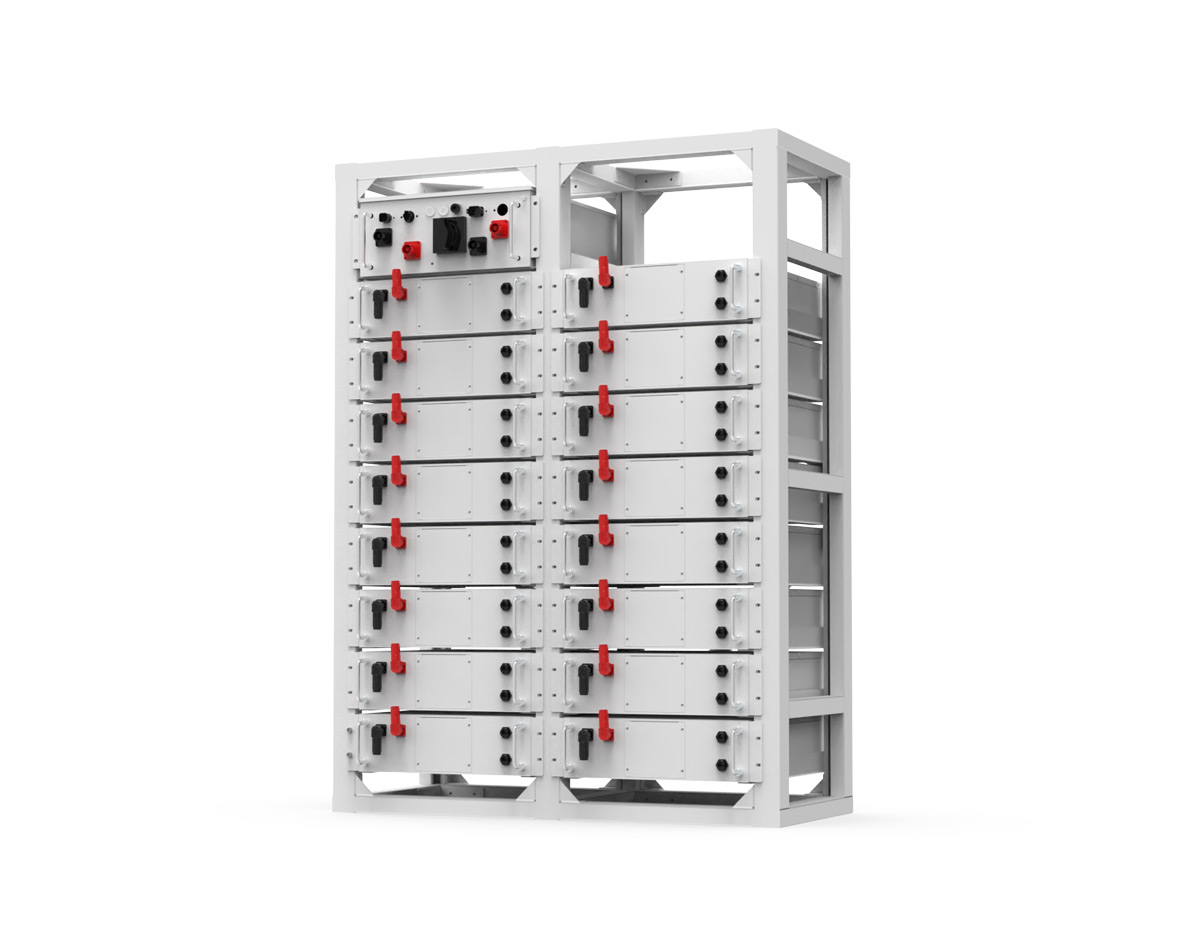

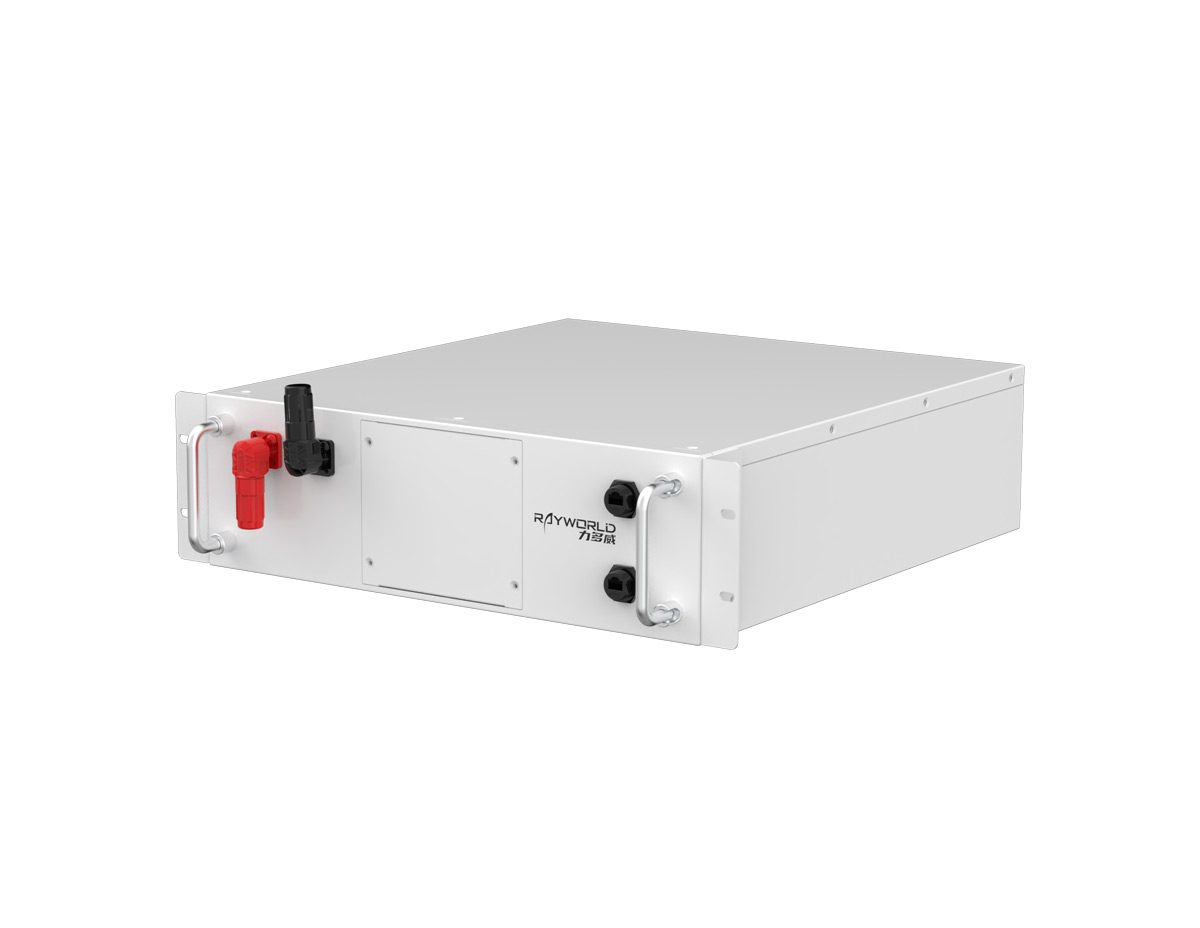

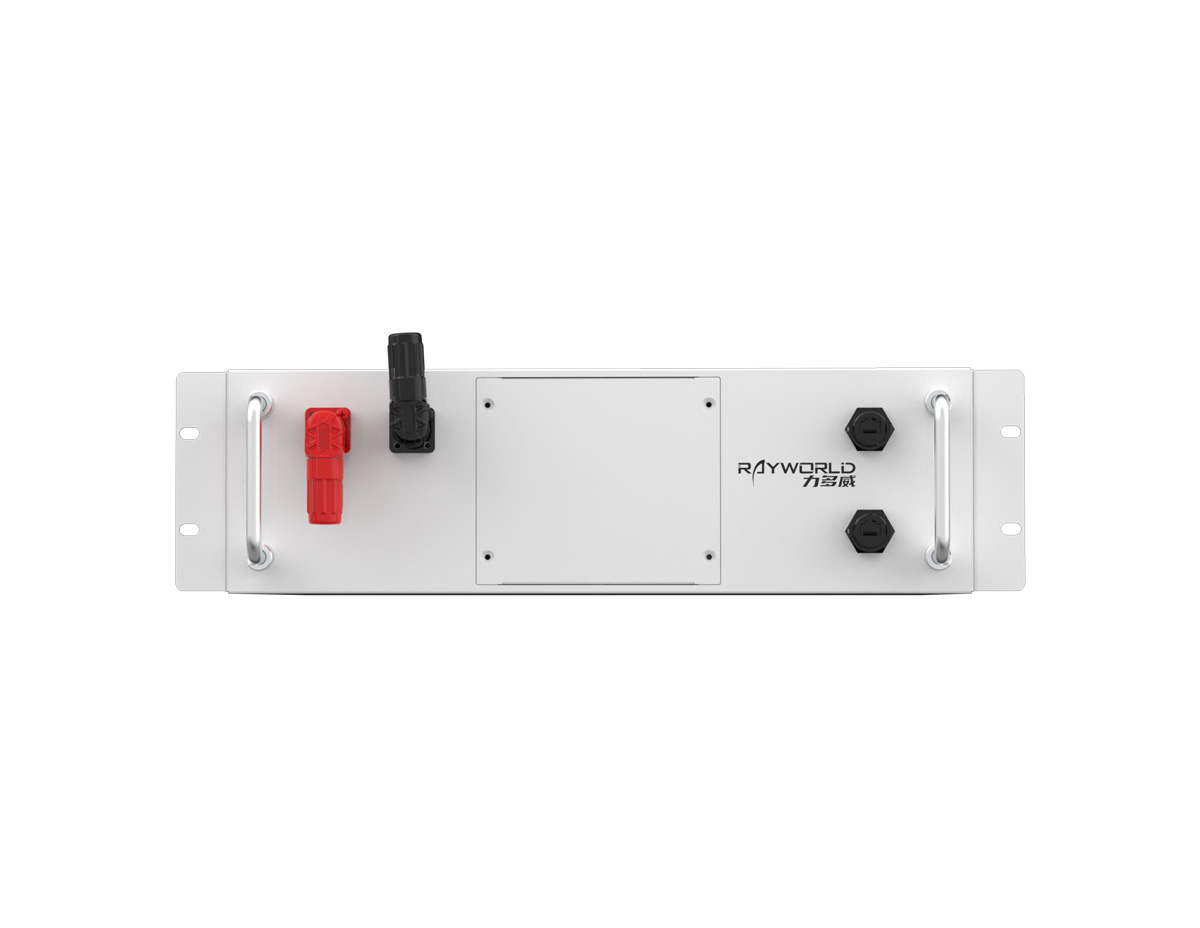

型号 Model: HX51100B (3U), CC614100A, CC819100A High Voltage Rack mount LFP Commercial and Industrial Energy Storage System 19英寸 插箱 机架式高压工商储能锂电池 规格书 Specifications Datasheet
| 基本参数 Basic SPECS | |||
|---|---|---|---|
| 产品型号 (Model) | HX51100B | CC614100A | CC819100A |
| 电芯类型 (Cell Type) | LiFePO4 磷酸铁锂 | ||
| 电池包组合方式 (Configuration) | 16S 1P | 192S 1P | 256S 1P |
| 标称能量 (Nominal Energy) | 5.12kWh |
61.44kWh |
81.92kWh |
| 标称电压 (Nominal Voltage) | 51.2V | 614.4V | 819.2V |
| 工作电压 (Operating Voltage) | 43.2V~58.4V | 518.4V~700.8V | 691.2V~934.4V |
| 单个电池组的标称容量 (Nominal Capacity of a Single Pack) | 100Ah | ||
| 单个电池组的高度 (Single Pack Height) | 3U | ||
| 最大充电电流 (Max Charge Current) | 50A (0.5C) | ||
| 最大放电电流 (Max Discharge Current) | 50A (0.5C) | ||
| 循环寿命 (Cycle Life) | 4500 次 @100%DOD, 80%EOL | ||
| 充电温度 (Charge Temperature) | 0~60°C (32~140°F) | ||
| 放电温度 (Discharge Temperature) | -20~60°C (-4~140°F) | ||
| 更多参数 More SPECS | |||
| 防护等级 (Protection Rating) | IP20 (可升级 Upgradable) | ||
| 工作相对湿度 (Operating Relative Humidity) | 10%~95%RH（无冷凝 non-condensing） | ||
| 工作海拔 (Operating Altitude) | < 2000m | ||
| 尺寸（长 × 宽 × 高） (Dimensions L × W × H) |
482 × 505 × 133 mm 19 × 19.9 × 5.2 inch |
582 × 540 × 2170 mm 22.9 × 21.3 × 85.4 inch |
1105 × 540 × 1590 mm 43.5 × 21.3 × 62.6 inch |
| 重量 (Weight) | 45 kg (99 lbs) | 675 kg (1488 lbs) | 900 kg (1984 lbs) |
| 支持的逆变器品牌 Compatible Inverter (PCS) Brands |
Deye, FOX, SRNE, Pylontech, Must, GOODWE, LuxPowerTek, Solis, Growatt, SOFAR, Sol-Ark, SMA, Victron Energy, Voltronic, etc. | ||
| 支持的逆变器类型 (Supported Inverter PCS Type) |
混合式 Hybrid (On-grid, Off-grid, Solar) | ||
| 通讯功能 (Communication) | CAN, RS485, RS232 | ||
| 断路器 Circuit Breaker |
有 (Yes) | ||
| 可选定制功能 Optional Features |
SNMP、4G、Wi-Fi、主动均衡/被动均衡 (Active Balancing / Passive Balancing)、陀螺仪防盗 (Gyroscope Anti-theft)、自加热 (Self-heating) | ||
| LCD 屏 | 有 (Yes) | ||
| 蓝牙 APP 远程监控 Bluetooth APP Remote Monitoring |
有 (Yes) | ||
| 认证 (Certification) | MSDS, UN38.3 | ||
| 说明书和保修卡 User Manual & Warranty Card |
有PDF电子版和印刷版文件 (Available in both print file and digital PDF file.) |
||
| 保修 (Warranty) | 3~5 (Years) | ||
| 保护板 BMS Protection | |
|---|---|
| 保护功能 Protection Functions |
过充、过放、过流、过压、欠压、过热、失温、短路、电芯被动均衡等全面的保护功能。 Overcharge, Over-discharge, Overcurrent, Overvoltage, Undervoltage (Low-voltage), Overtemperature, Under-temperature (Low-temperature), Short Circuit, and Passive Cell Balancing. |
| BMS 品牌 Brands |
达人 DAREN，达锂 DALY，嘉佰达 JBD (Jiabaida)，沛城 PACEex，华塑 HUASU |
| 工艺 Process | |
|---|---|
| 产品外壳 Product Enclosure Housing |
钣金 Metal |
| 防锈 Rust Protection |
有 (Yes) |
| 产品外壳颜色 Product Enclosure Color |
白、灰、黑、金、银，以及其他各种定制色。 White, Gray (Grey), Black, Gold (Golden), Silver, and other colors are available upon request. |
| Logo | 可改为客户的商标 / 丝印式 / 激光镭射雕刻 / CNC Logo can be customized to customer’s brand / Silk-screen / Laser Engraving / CNC |
| 贴牌 / 代工 / 定制 OEM / ODM / Customized | |
|---|---|
| 我司承接以上业务 We accept the above orders. |
完全可以 Yes, Absolutely. |
