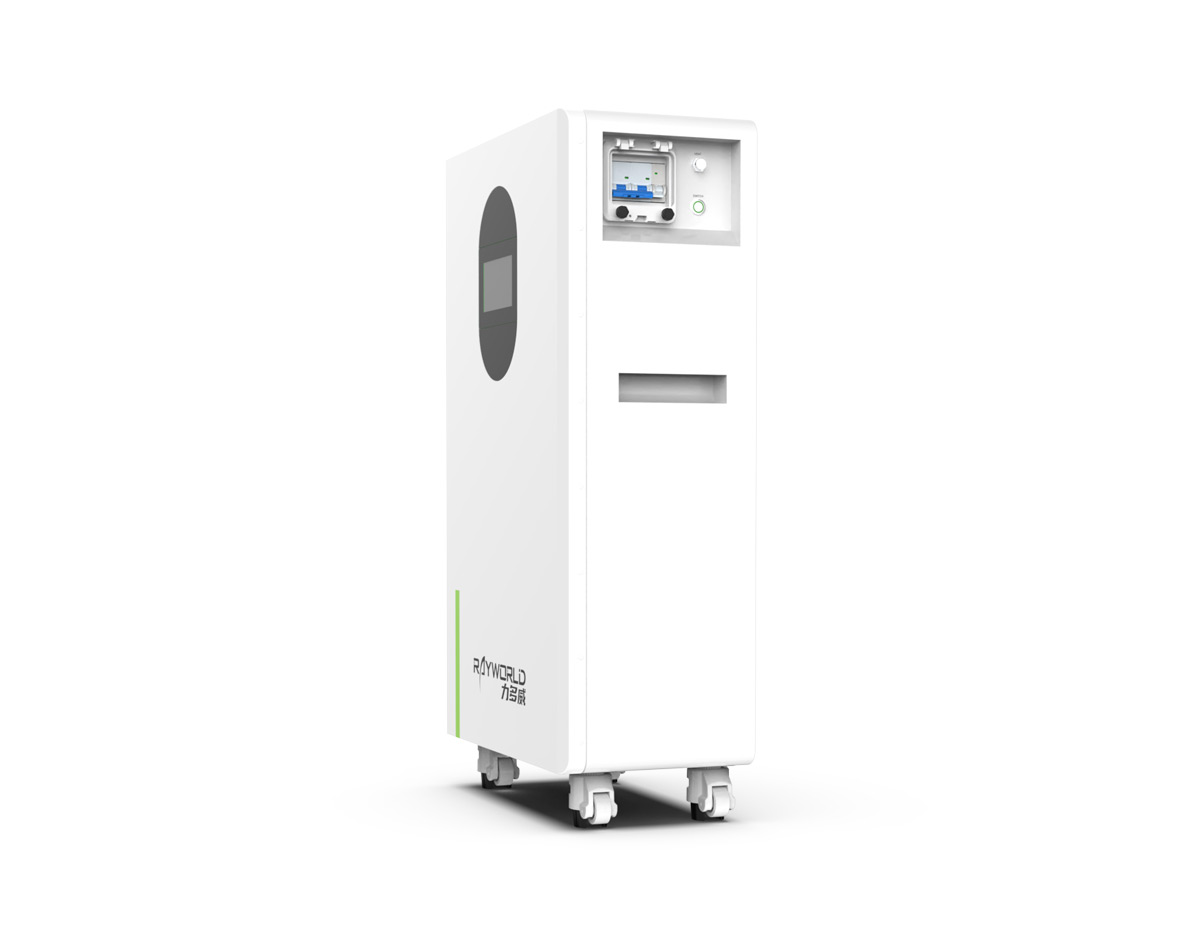

型号 Model: RHM51150A Wheeled HESS LFP Battery 轮式家庭储能锂电池 规格书 Specifications Datasheet
| 基本参数 Basic SPECS | |
|---|---|
| 锂电芯类型 Lithium Cell Type |
磷酸铁锂 (方形锂电芯) LFP Prismatic Lithium-ion Cell (3.2V) 宁德时代 CATL，CALB 中创新航，亿纬 EVE，REPT 瑞普兰钧，比亚迪 BYD，力神 LISHEN |
| 支持的逆变器类型 Supported Inverter (PCS) Types |
混合式 Hybrid (Solar, Off-grid, On-grid) |
| 标称电压 Nominal Voltage |
51.2V |
| 标称容量 Nominal Capacity |
150Ah |
| 标称能量 Nominal Energy |
7.68kWh (7680Wh) |
| 尺寸和重量 Dimensions / Weight |
与产品图片一样 (Identical to the product image) |
| 上限充电电压 Upper Limit Charging Voltage |
58.4V |
| 放电截止电压 Discharge Cut-off Voltage |
40V |
| 最大持续充电电流 Max Continuous Charge Current |
100A |
| 最大持续放电电流 Max Continuous Discharge Current |
100A |
| 产品认证 Product Certifications |
MSDS, UN38.3 |
| 保修 Warranty | |
|---|---|
| 有限保修 Limited Warranty | 3 – 5 年 (Years) |
| 其他参数 More SPECS | |
|---|---|
| 循环次数 Cycle Life |
4000 Cycles @100%DOD, 80% EOL |
| 最大并联数 Max Parallel Connections |
32 (245kWh) |
| 整机内阻 Internal Resistance (Product IR) |
≤100mΩ |
| 插头 Connector |
120A 快插头 (ESS Quick Connector) |
| 防护防水防尘等级 IP Rating (Ingress Protection Rating) |
IP 65 (可升级 Upgradable) |
| 通讯功能 Communications |
CAN、RS485 (Modbus RTU) |
| 断路器 Circuit Breaker |
有 (Yes) |
| 可选定制功能 Optional Features |
RS232、4G、Wi-Fi、主动均衡/被动均衡 (Active Balancing / Passive Balancing)、陀螺仪防盗 (Gyroscope Anti-theft)、自加热 (Self-heating)、逆变器 (PCS / Inverter)、太阳能板 (Solar Panel) |
| LCD 屏 | 有 (Yes) |
| 蓝牙 APP 远程监控 Bluetooth APP Remote Monitoring |
有 (Yes) |
| 支持的逆变器品牌 Compatible Inverter (PCS) Brands |
Deye, FOX, Growatt, Must, GOODWE, SRNE, Pylontech, LuxPowerTek, Solis, SOFAR, Sol-Ark, SMA, Victron Energy, Voltronic, etc. |
| 说明书和保修卡 User Manual & Warranty Card |
有PDF电子版和印刷版文件 (Available in both print file and digital PDF file.) |
| 保护板 BMS Protection | |
|---|---|
| 保护功能 Protection Functions |
过充、过放、过流、过压、欠压、过热、失温、短路、电芯被动均衡等全面的保护功能。 Overcharge, Over-discharge, Overcurrent, Overvoltage, Undervoltage (Low-voltage), Overtemperature, Under-temperature (Low-temperature), Short Circuit, and Passive Cell Balancing. |
| BMS 品牌 Brands |
达人 DAREN，达锂 DALY，嘉佰达 JBD (Jiabaida)，沛城 PACEex，华塑 HUASU |
| 工作温度和湿度 Operating Temperature & Humidity | |
|---|---|
| 充电温度 Working Charge Temperature |
0 ~ 60°C 32 ~ 140°F |
| 放电温度 Working Discharge Temperature |
-20 ~ 60°C -4 ~ 140°F |
| 工作相对湿度 Working Relative Humidity |
10% ~ 95% RH (无冷凝 non-condensing) |
| 工艺 Process | |
|---|---|
| 产品外壳 Product Enclosure Housing |
钣金 Metal |
| 防锈 Rust Protection |
有 (Yes) |
| 产品外壳颜色 Product Enclosure Color |
白、灰、黑、金、银，以及其他各种定制色。 White, Gray (Grey), Black, Gold (Golden), Silver, and other colors are available upon request. |
| Logo | 可改为客户的商标 / 丝印式 / 激光镭射雕刻 / CNC Logo can be customized to customer’s brand / Silk-screen / Laser Engraving / CNC |
| 贴牌 / 代工 / 定制 OEM / ODM / Customized | |
|---|---|
| 我司承接以上业务 We accept the above orders. |
完全可以 Yes, Absolutely. |
